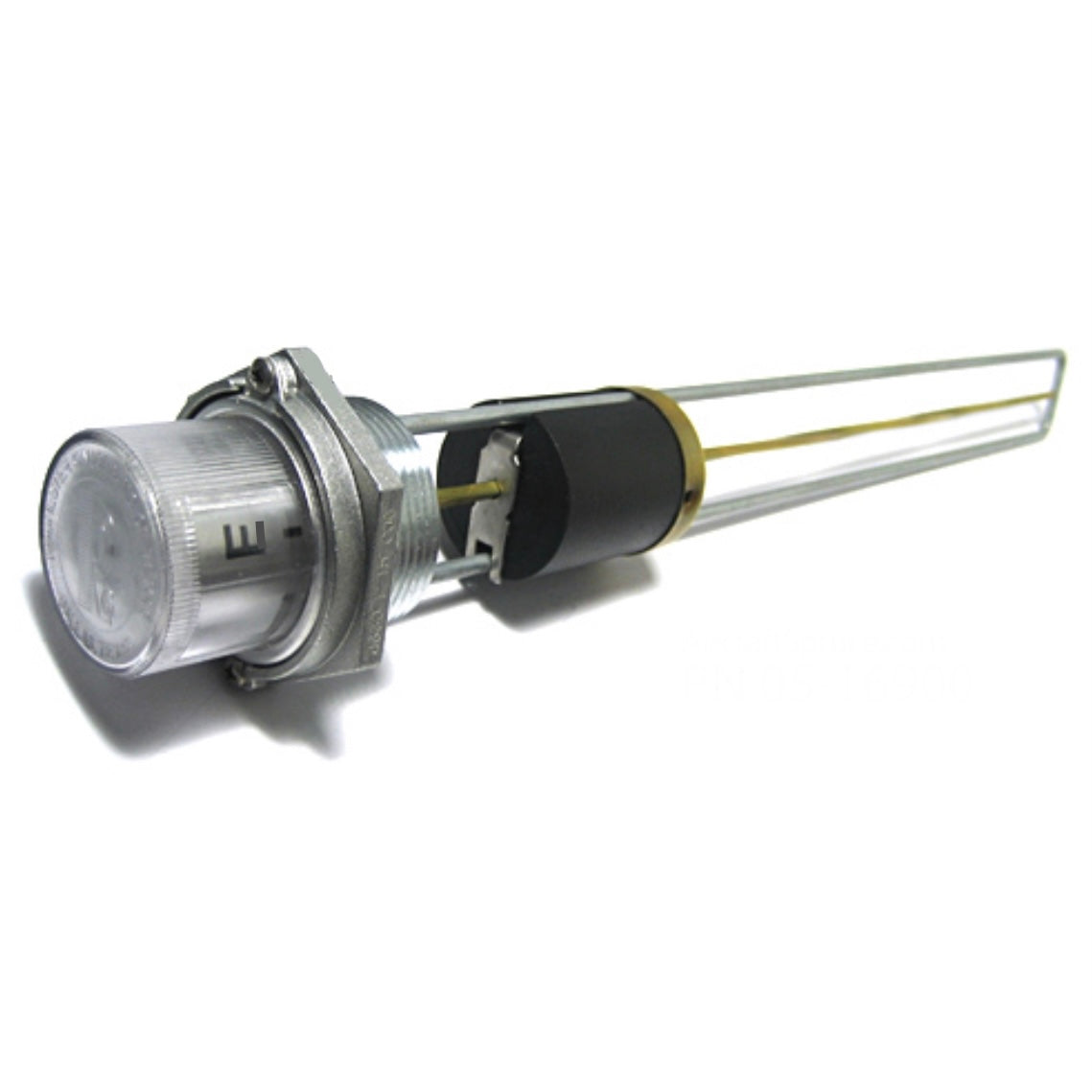

Rochester Gauges Spiral Gauge. Tank depth should be at least 1/2” greater than the length of the gauge. The additional depth may be considered "reserve" at the bottom of the tank that will not be measured.
Designed for top mount
Direct-read dial comes standard. TwinSite sender dials available in 240-30, 0-90 or 0-30 Ohms also available, contact us for assistance ordering them.
1-1/2” MNPT tank connection
Suitable for up to 25 psig maximum
UL Listed for flammable liquids when gauge is 36” or less
