General Specifications*
Temperature Range: Standard range is -40°F to 176°F, -40°C to 80°C with optional stainless steel mounting bolts which may be required for below -20°F.

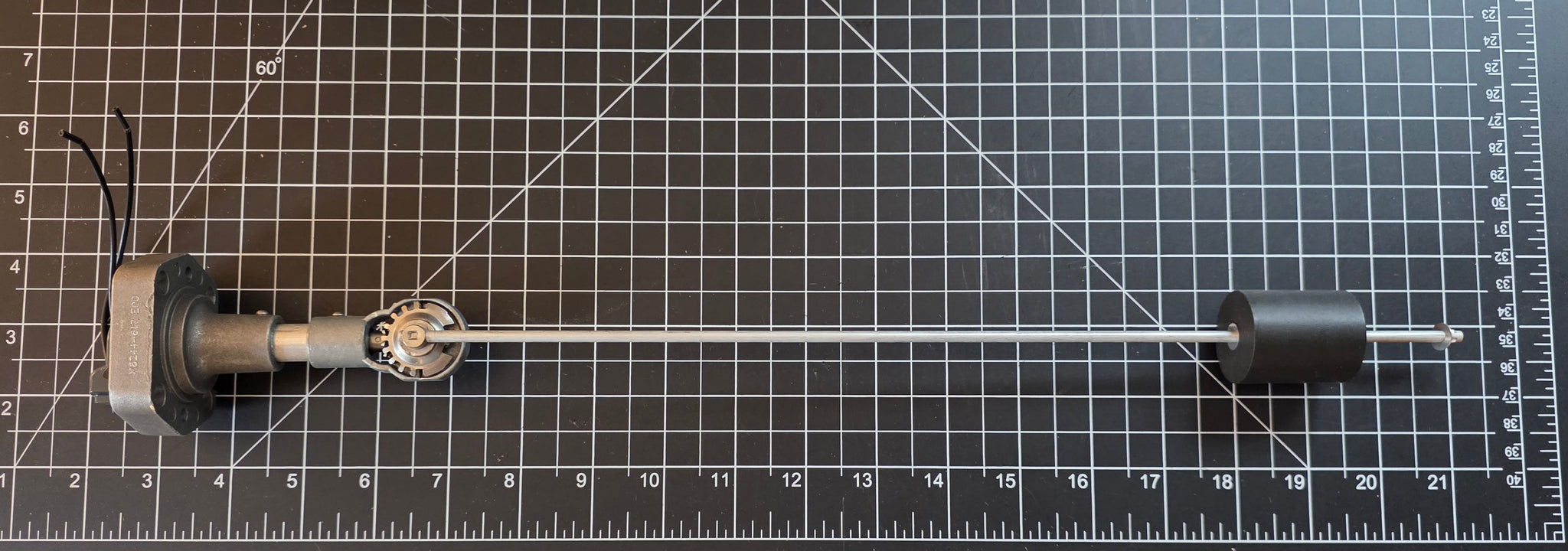

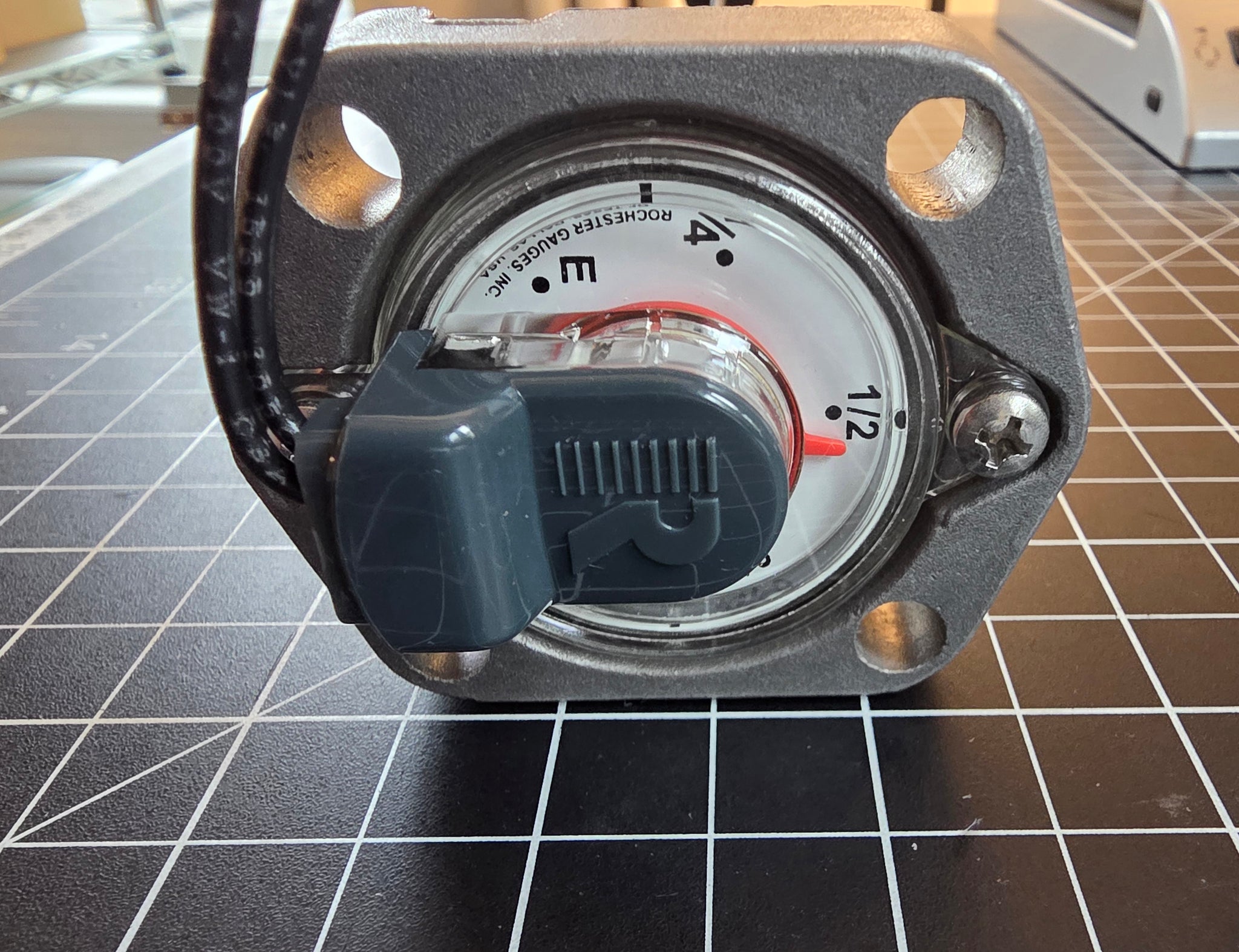

Accuracy: Accuracy depends upon gauge sizing. Junior and Senior dials ±5%, 4” dials ±4%, TwinSite® dials ±8%. Hall dial output ±4% of visual reading. Accuracy may be less depending upon tank shape. Accuracy may be less near full and empty. Accuracy may be less if tank is not level. Accuracy may be less due to variation in liquid temperature. This gauge is not to be used for filling. All accuracy estimates are expressed as percentage of full scale. Comes fitted with 0-90 Ohms TwinSite sender dial installed. Support length is 3” and 14” float arm that may be adjusted before crimping the float in place. We offer a Cut & Crimp service so the gauge is ready to go upon arrival, please inquire if interested.
Humidity: For high humidity below ground or under chassis applications, brass, stainless steel, or painted aluminum heads are recommended.
Shock & Vibration: Suitable for mobile service applications.
Power: 0.5 watts maximum dissipation for TwinSite® versions.
Working Pressure: 375 psi. [25,8 Bar]
Approvals: Gauges are UL listed for LP Gas service applications.
Note: This item is not always in stock so please contact us to check availability if you need the part immediately.
